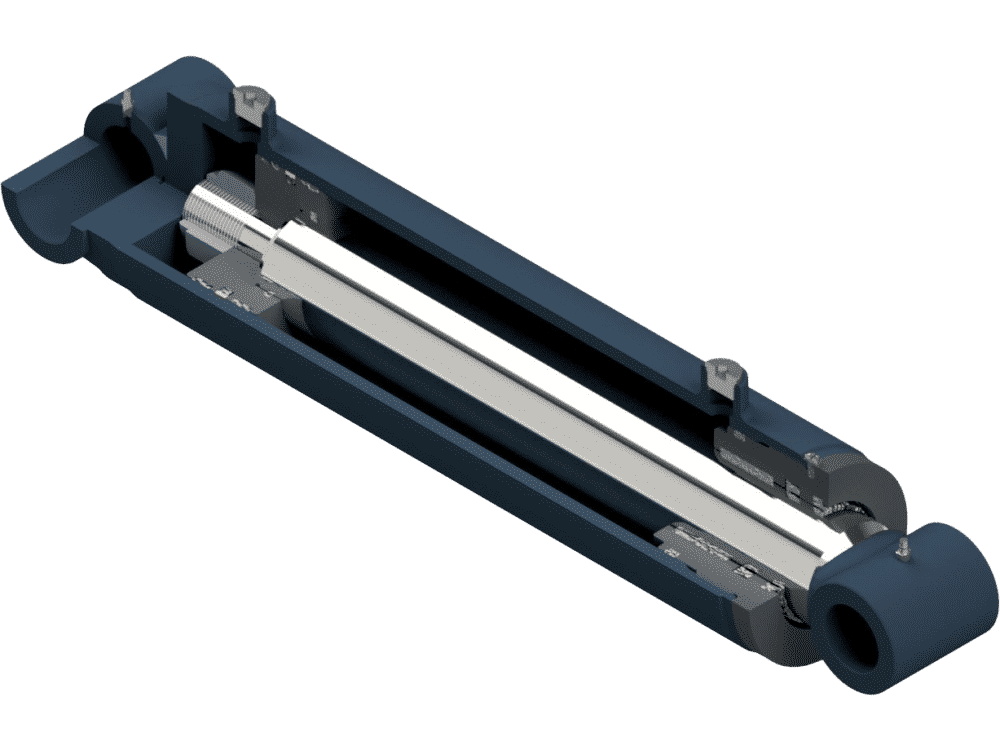

700 Series Cylinder Features

Cross tube style base and rod mounts
3000 PSI Heavy Duty Type
Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
Ground & polished, hard chrome plated rods (75,000 min. yield)
Welded style construction certified to A.W.S. B2.1
Internally threaded head design with buttress threads
Highest quality seal configurations compatible with petroleum base fluids
Increased bearing length on both head & piston
Ductile iron head gland & piston
Piston utilizes wear bearings
Nylon inserted lock nut
Standard paint; black primer

Pre-Engineered Hydraulic Cylinder Configurations

700 Series Cylinder Diagram

Bore	Rod	A	B	CD	E	F	G	H	I	J	K	L	Part #
3.00	1.75	3.50	1.50	1.000	.81	9.00	.88	3.88	2.75	2.75	3.75	#6	704-.
3.00	2.00	3.50	1.50	1.000	.81	9.00	.88	3.88	2.75	2.75	3.75	#6	706-.
3.50	1.75	4.00	1.56	1.250	.88	9.25	1.00	4.00	2.88	3.25	4.25	#8	710-.
3.50	2.00	4.00	1.62	1.250	.88	9.50	1.00	4.06	3.06	3.25	4.25	#8	712-.
4.00	2.00	4.62	2.12	1.500	1.12	11.00	1.25	5.19	3.44	3.00	4.75	#8	716-.
	2.50	4.62	2.12	1.500	1.12	11.00	1.25	5.19	3.44	3.00	4.75	#8	718-.
	3.00	4.62	2.00	1.500	1.12	11.50	1.25	5.81	3.69	4.25	4.75	#8	720-.
4.50	2.00	5.12	1.88	1.500	1.12	11.00	1.25	5.00	3.62	3.00	5.50	#10	724-.
	2.50	5.12	2.12	1.500	1.12	11.50	1.25	5.25	3.88	3.00	5.50	#10	726-.
	3.00	5.12	2.12	1.500	1.12	11.50	1.25	5.25	3.88	4.25	5.50	#10	728-.
	3.50	5.12	2.12	1.500	1.12	11.75	1.25	6.00	3.75	4.25	5.50	#10	730-.
5.00	2.00	5.62	2.25	1.750	1.25	11.25	1.38	5.19	3.69	3.25	6.00	#12	734-.
	2.50	5.62	2.12	1.750	1.25	12.00	1.38	5.50	3.94	3.25	6.00	#12	736-.
	3.00	5.62	2.12	1.750	1.25	12.00	1.38	5.50	3.94	4.75	6.00	#12	738-.
	3.50	5.62	2.00	1.750	1.25	11.75	1.38	5.38	3.81	4.75	6.00	#12	740-.
	4.00	5.62	2.12	1.750	1.25	12.00	1.38	6.06	3.94	4.75	6.00	#12	742-.
5.50	2.50	6.12	2.19	1.750	1.25	12.25	1.38	5.56	4.00	3.25	7.00	#12	746-.
	3.00	6.12	2.06	1.750	1.25	12.00	1.38	5.44	3.88	4.75	7.00	#12	748-.
	3.50	6.12	2.06	1.750	1.25	12.00	1.38	5.44	3.88	4.75	7.00	#12	750-.
	4.00	6.12	2.19	1.750	1.25	12.25	1.38	5.56	4.00	4.75	7.00	#12	752-.
	4.50	6.12	2.06	1.750	1.25	12.75	1.38	6.00	4.62	5.50	7.00	#12	754-.
6.00	2.50	6.75	2.25	2.000	1.38	12.50	1.50	5.62	4.19	3.50	7.00	#12	758-.
	3.00	6.75	2.12	2.000	1.38	12.25	1.50	5.50	4.06	3.50	7.00	#12	760-.
	3.50	6.75	2.12	2.000	1.38	12.25	1.50	5.50	4.06	4.75	7.00	#12	762-.
	4.00	6.75	2.25	2.000	1.38	12.50	1.50	5.62	4.19	5.50	7.00	#12	764-.
7.00	2.50	8.00	2.81	2.500	1.62	14.00	1.75	6.75	4.38	5.00	8.25	#16	768-.
	3.00	8.00	2.81	2.500	1.62	14.00	1.75	6.75	4.38	5.00	8.25	#16	770-.
	3.50	8.00	2.81	2.500	1.62	14.00	1.75	6.75	4.38	5.00	8.25	#16	772-.
	4.00	8.00	2.69	2.500	1.62	14.50	1.75	6.62	5.00	5.00	8.25	#16	774-.
8.00	3.50	9.00	2.88	3.000	1.88	16.25	2.00	7.06	5.31	5.00	9.25	#16	778-.
	4.00	9.00	2.88	3.000	1.88	16.25	2.00	7.06	5.31	5.00	9.25	#16	780-.
	4.50	9.00	2.88	3.000	1.88	16.25	2.00	7.06	5.31	5.00	9.25	#16	782-.

Pre-Engineered Cylinder Drawing Program

Instantly customize and print detailed prints of our 700 Series Pre-Engineered Cylinders.

Try It Now

Ordering Information

All Pre-engineered Cylinders are manufactured in the U.S.A. and are backed by the Aggressive Hydraulics Cylinder Warranty.

To complete part#; replace (**.**) with stroke required
Maximum allowable stroke length for a given model is dependent on the actual maximum operating pressure and compressive load. Buckling strength limit for a cylinder will be calculated at the time of initial order or upon customer request.
Other port sizes and locations are available upon request
Consult factory for longer stroke and or higher pressure applications
