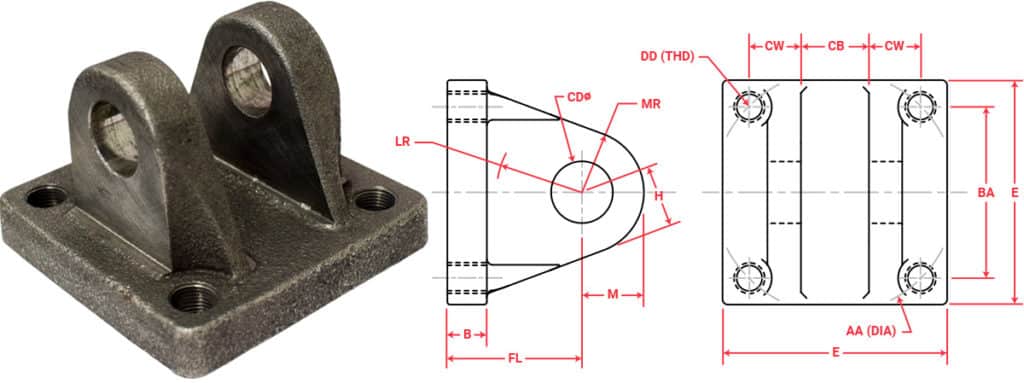

Clevis Brackets with Double Lugs
- Material: Forging, Weldment, or Cast Ductile Iron
- Drilled & Tapped for 4 Mounting Bolts
- Note: Cast ductile iron clevis brackets must not be welded in place
Part Numbers & Specifications
| Part Number | AA | BA | CB | CD | CW | DD | E | F | FL | LR | M | MR | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDCB-05 | 2.3 | 1.630 | 0.765 | 0.503 | 0.50 | 3/8″-24 | 2.5 | 0.38 | 1.13 | 0.50 | 0.50 | 0.56 | ||
| BDCB-06 | 2.9 | 2.060 | 1.265 | 0.753 | 0.63 | 1/2″-20 | 3.0 | 0.63 | 1.88 | 1.00 | 0.75 | 1.06 | ||
| BDCB-07 | 3.6 | 2.560 | 1.265 | 0.753 | 0.63 | 1/2″-20 | 3.5 | 0.63 | 1.88 | 1.06 | 0.75 | 1.06 | ||
| BDCB-10 | 4.6 | 3.250 | 1.515 | 1.003 | 0.75 | 5/8″-18 | 4.5 | 0.75 | 2.25 | 1.25 | 1.00 | 1.13 | ||
| BDCB-13 | 5.4 | 3.810 | 2.032 | 1.378 | 1.00 | 5/8″-18 | 5.0 | 0.88 | 3.00 | 1.88 | 1.38 | 1.75 | ||
| BDCB-17 | 7.0 | 4.940 | 2.531 | 1.753 | 1.25 | 7/8″-14 | 6.5 | 0.88 | 3.13 | 2.00 | 1.75 | 1.88 |
